Quality is built into every stage of production at Variety Plastics from raw material inspection and precision moulding to surface finish plating and comprehensive testing compliance.
Every clamp shell, top plate, weld bush, and hardware assembly is verified against rigorous manufacturing standards before shipment.
Select testing procedures to inspect inspection parameters, testing compliance, and certification protocols.
Testing clamp assemblies under hydraulic pressure to verify zero structural yield, zero line migration, and secure line locking under operational conditions.
3D CAD modeling, DIN 3015 dimension checking, and mould design verification before tooling.
Strict raw material testing based on approved manufacturing specifications and polymer quality standards.
Automated injection moulding with controlled melt flow and barrel temperatures for defect-free clamp bodies.
Micrometer and vernier gauge audits verifying clamp shell bore diameter, height, and mounting hole centers.
Inspection of anti-corrosion phosphating, galvanizing, and surface smoothness on top/bottom metal plates.
Pre-assembly of clamp bodies with top plates, bottom plates, rail nuts, and high-tensile hardware.
Hydraulic load and pressure testing to verify clamp holding strength and structural stability under fluid force.
Pneumatic air integrity checks to ensure zero sealing defects in custom manifold and cap components.
100% visual inspection and batch sampling to verify zero flash, cracks, or surface blemishes.
NABL & CIPET testing compliance verification; Material Test Certificates generated on request.
Corrosion-protective moisture-proof wrapping and heavy cardboard boxing for secure transport.
Systematic barcode tagging and dispatch management to domestic OEMs and export destinations worldwide.
Built in our Sidhpur, Gujarat facility with 100% in-house manufacturing control over metallurgy, polymer molding, and quality testing.

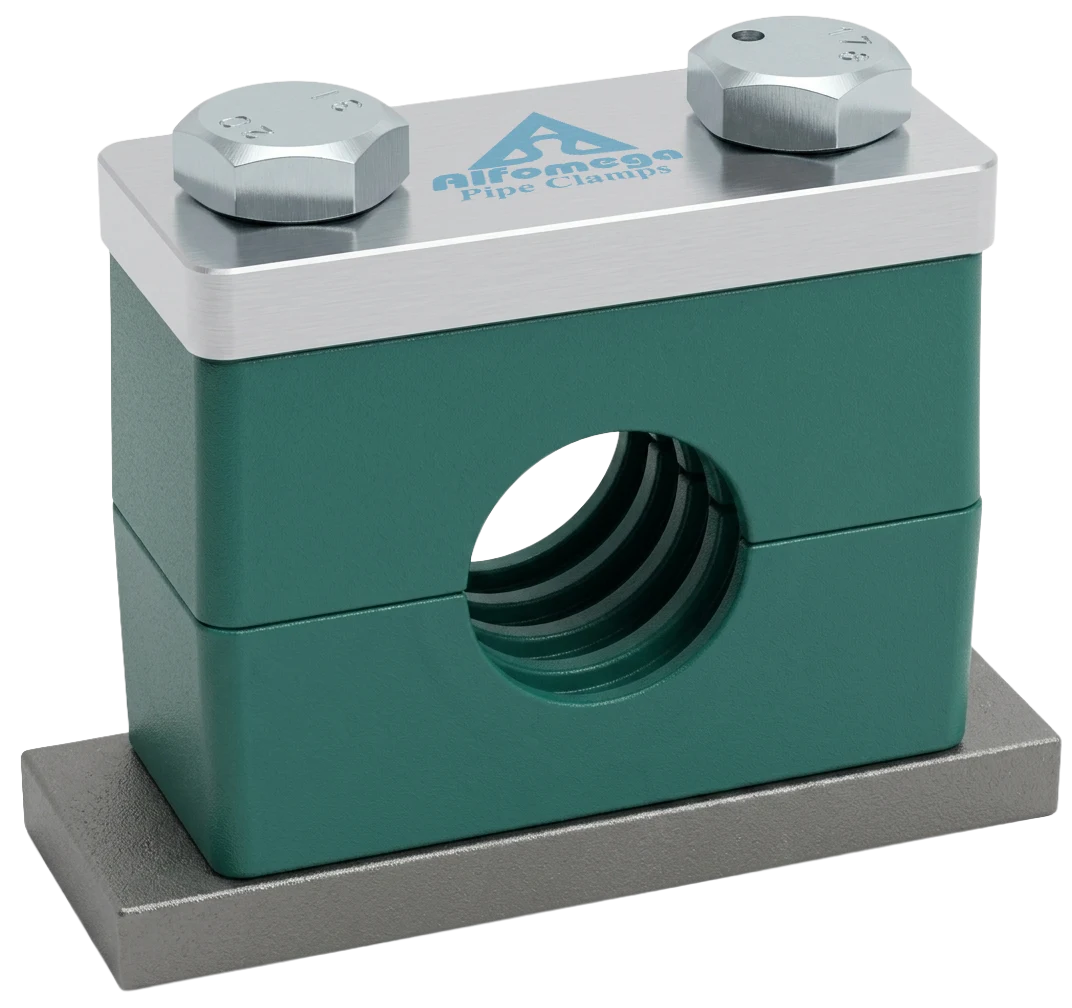

100% prime-grade UV-stabilized virgin PP granules engineered for high chemical inertness, vibration damping, and impact strength. Operational resilience from -30°C to +90°C.
.webp)

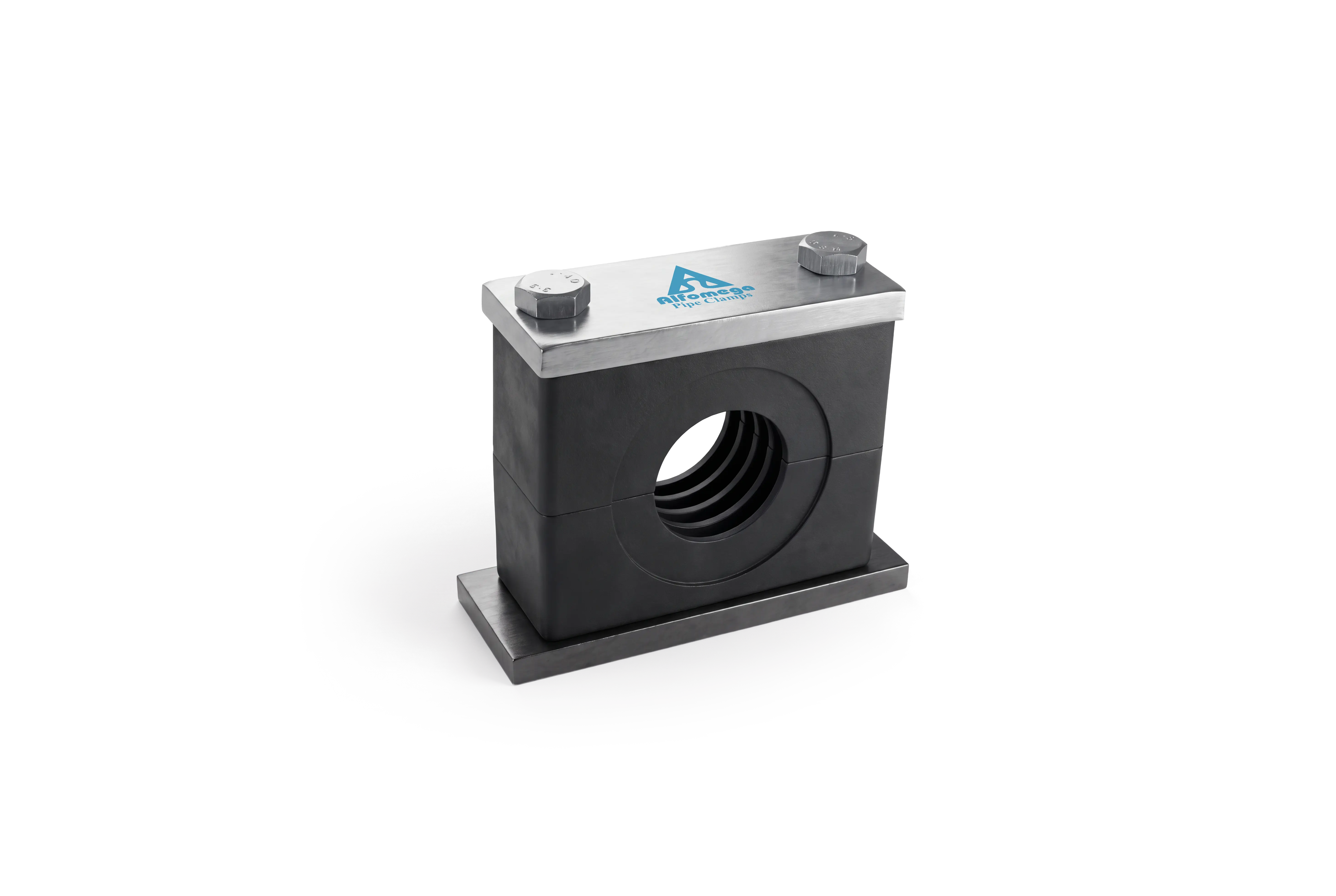

Heavy-duty engineering polyamide rated for severe thermal conditions (-40°C to +120°C). Certified with UL 94 V-0 flame retardancy and high mechanical tensile resistance.

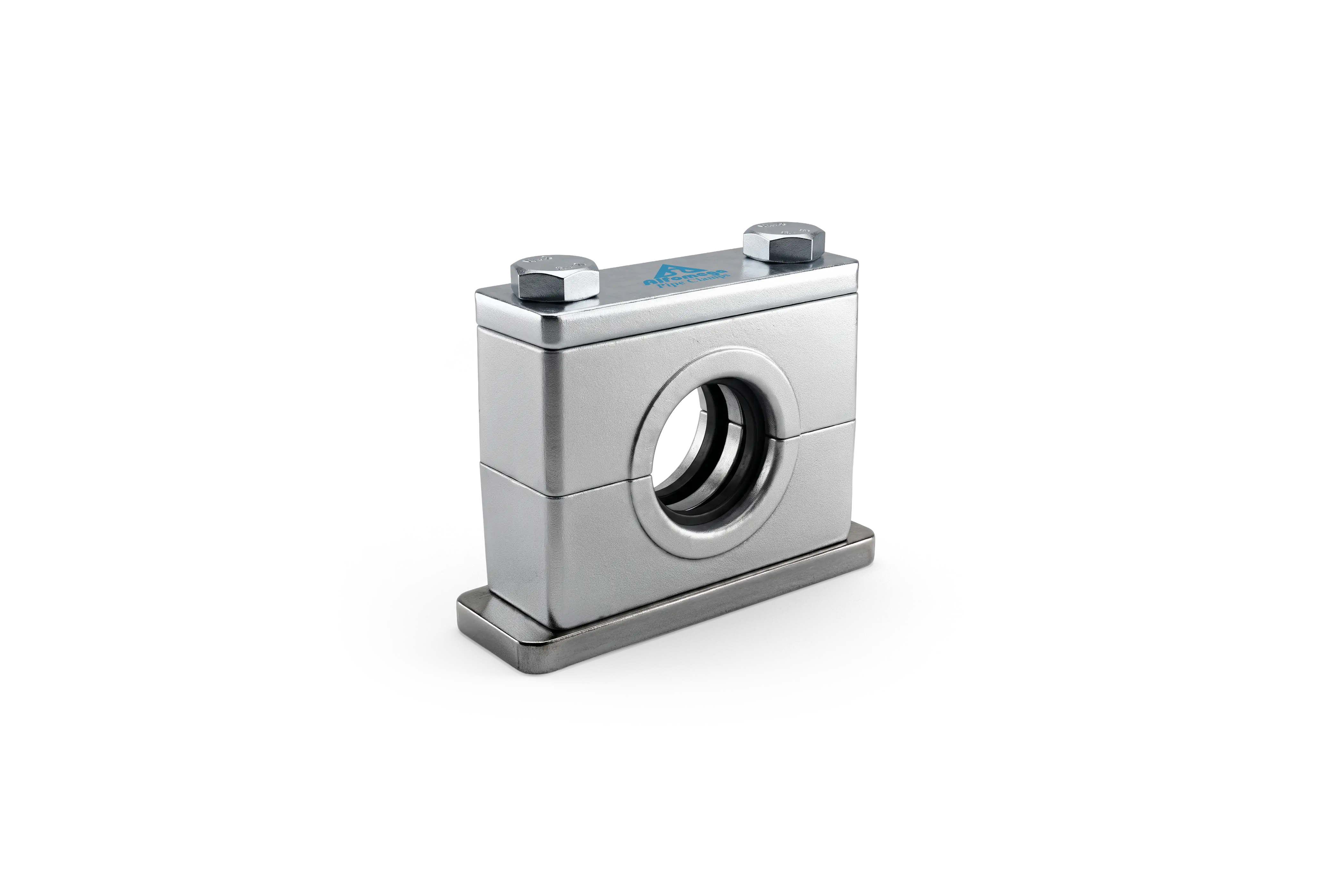

Fe 410 / Fe 510 Carbon Steel and AISI 316 Stainless Steel top & bottom plates. Finished with electro-galvanizing or anti-rust black phosphating for 240+ hour salt fog protection.
Supporting OEMs, Hydraulic Manufacturers, Industrial Automation, Marine & Infrastructure projects worldwide with certified DIN 3015 clamping solutions.
